How to Install Oracle Database 19c Single Instance on Kubernetes

Muhammad Baso Adrian Ibrahim January 23, 2024

Prequisites

- Download Oracle Database 19c Linux Package here

- Installed K8S

- Installed Docker

- Docker Images Oracle Database 19c here


Langkah Penginstalan

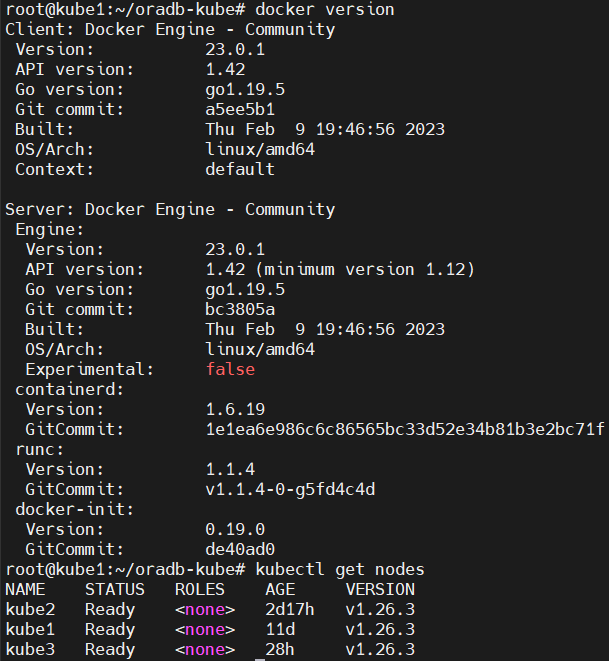

- Install Docker and K8S


- Clone Docker Images

$ git clone https://github.com/oracle/docker-images.git
- Copy Oracle Database 19c Linux Package to the same location of dockerfile directory

$ mv LINUX.X64_193000_db_home.zip ~/docker-images/OracleDatabase/SingleInstance/dockerfiles/19.3.0/
$ ls docker-images/OracleDatabase/SingleInstance/dockerfiles/19.3.0/


- Build Container Image

$ cd ~/docker-images/OracleDatabase/SingleInstance/dockerfiles/
$ ./buildContainerImage.sh -e -v 19.3.0 -t oracle19c:1.0.0 -o '--build-arg SLIMMING=false'

// Note
Usage: buildContainerImage.sh -v [version] -t [image_name:tag] [-e | -s | -x | -f] [-i] [-p] [-b] [-o] [container build option]
Builds a container image for Oracle Database.

Parameters:
   -v: version to build
       Choose one of: 11.2.0.2  12.1.0.2  12.2.0.1  18.3.0  18.4.0  19.3.0  21.3.0 23.3.0
   -t: image_name:tag for the generated docker image
   -e: creates image based on 'Enterprise Edition'
   -s: creates image based on 'Standard Edition 2'
   -x: creates image based on 'Express Edition'
   -f: creates image based on Database 'Free'
   -i: ignores the MD5 checksums
   -p: creates and extends image using the patching extension
   -b: build base stage only (Used by extensions)
   -o: passes on container build option
- Running Oracle Database in a Container

  docker run --name oracle-19c -p 127.0.0.1::1521 -p 127.0.0.1::5500 -e ORACLE_SID=POLIUPGORA -e ORACLE_PDB=POLIUPGPDB1 -e ORACLE_PWD=poliup9 oracle19c:1.0.0

// Note
Parameters
--name:        The name of the container (default: auto generated).
-p:            The port mapping of the host port to the container port.
               The following ports are exposed: 1521 (Oracle Listener), 5500 (OEM Express), 2484 (TCPS Listener Port if TCPS is enabled).
--ulimit:      Resource limits. Update according to Oracle Database documentation.
-e ORACLE_SID: The Oracle Database SID that should be used (default: ORCLCDB).
-e ORACLE_PDB: The Oracle Database PDB name that should be used (default: ORCLPDB1).
-e ORACLE_PWD: The Oracle Database SYS, SYSTEM and PDB_ADMIN password (default: auto generated).
- Set Password for User sys Oracle

$ cd ~/docker-images/OracleDatabase/SingleInstance/dockerfiles/19.3.0/
$ docker exec oracle-19c ./setPassword.sh pnup01


- Push Image to your Repository for used to Kubernetes

$ docker login
$ docker commit oracle-19c poliupgora-19c
$ docker tag poliupgora-19c:latest andhy2502/poliupgora-19c:v1.0
$ docker push andhy2502/poliupgora-19c:v1.0
Setup Kubernetes
- Encrypt Base64 Password for Oracle Root Password

$ echo  'poliupg01' | base64
cG9saXVwZzAxCg==
- Create file namespace.yaml and apply

$ nano namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: oradb-kube
  labels:
    name: oradb-kube

$ kubectl apply -f namespace.yaml


- Create file oracle-db-secret.yml and apply

$ nano oracle-db-secret.yml
apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: oracledb-secret
  namespace: oradb-kube
data:
  oracleRootPassword: cG9saXVwZzAxCg==

$ kubectl apply -f oracle-db-secret.yml
- Create file oradb-deployment.yaml and apply

$ nano oradb-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: oracle-19c
  namespace: oradb-kube
spec:
  replicas: 1
  selector:
    matchLabels:
      app: oracle-19c
  template:
    metadata:
      labels:
        app: oracle-19c
        selector: oracle-19c
    spec:
      containers:
      - name: oracle-19c
        image: andhy2502/poliupgora-19c:v1.0
        resources:
          limits:
            cpu: 1
            memory: 2500Mi
          requests:
            cpu: 1
            memory: 2000Mi
        ports:
        - name: main-port
          containerPort: 1521
        - name: em-port
          containerPort: 5500

$ kubectl apply -f oradb-deployment.yaml




- Create file service.yaml and apply

$ nano service.yaml
apiVersion: v1
kind: Service
metadata:
  name: srv-nodeport-oradb
  namespace: oradb-kube
  labels:
    app: oracle-19c
spec:
  type: NodePort
  ports:
    - port: 1521
      name: listener-poliupgora
      nodePort: 30211
    - port: 5500
      name: em-poliupgora
      nodePort: 30212
  selector:
    app: oracle-19c

$ kubectl apply -f service.yaml



Additional Access OracleDB on K8S using SQL Plus

$ wget https://download.oracle.com/otn_software/linux/instantclient/214000/instantclient-basic-linux.x64-21.4.0.0.0dbru.zip
$ wget https://download.oracle.com/otn_software/linux/instantclient/214000/instantclient-sqlplus-linux.x64-21.4.0.0.0dbru.zip
$ sudo mkdir -p /opt/oracle
$ sudo unzip -d /opt/oracle instantclient-basic-linux.x64-21.4.0.0.0dbru.zip
$ sudo unzip -d /opt/oracle instantclient-sqlplus-linux.x64-21.4.0.0.0dbru.zip
$ nano ~/.bashrc
-- ADD on END OF LINE --
export LD_LIBRARY_PATH=/opt/oracle/instantclient_21_4:$LD_LIBRARY_PATH
export PATH=$LD_LIBRARY_PATH:$PATH
$ source ~/.bashrc
$ sqlplus -V
$ sqlplus sys/pnup01@10.1.18.14:1521/POLIUPGORA as sysdba
